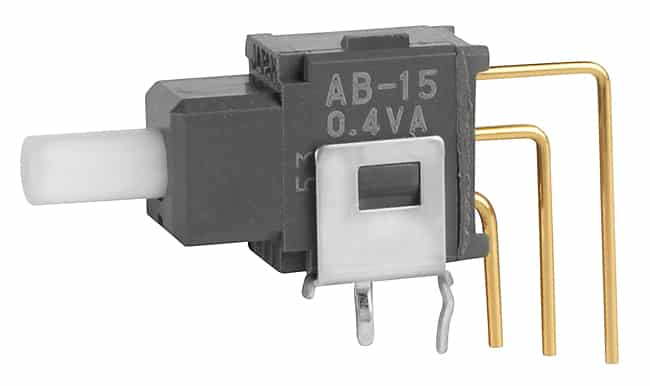

AB15AV

Process Sealed Subminiature Pushbuttons

AB Series
Process Sealed Subminiature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
AB15AV
Description
Process Sealed Subminiature Pushbuttons
Name
Pushbutton
Series
AB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
Actuator Cap Color
White
Mounting Type
Through Hole, Right Angle, Vertical
Termination Style
PC Pin
Features
Sealed - Fully
Rating
0.4
Illumination
Non-Illuminated
