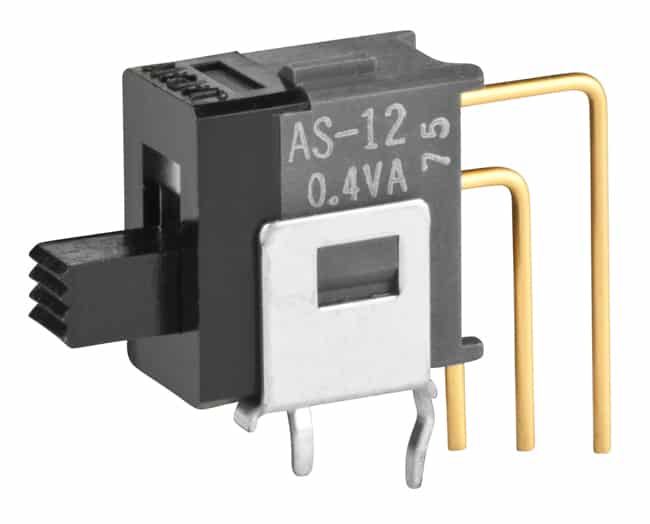

AS12CV/A

SWITCH SLIDE SPDT 0.4VA 28V

AS Series
SWITCH SLIDE SPDT 0.4VA 28V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
AS12CV/A
Description
SWITCH SLIDE SPDT 0.4VA 28V
Name
Slide
Series
AS
part status
Active
Poles
SPDT
contact timing
Non-Shorting (BBM)
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard
actuator length
3.80mm
contact material
Phosphor Bronze
contact finish
Gold
Mounting Type
Through Hole, Right Angle, Vertical
Termination Style
PC Pin
Features
Black Actuator
Rating
0.4
