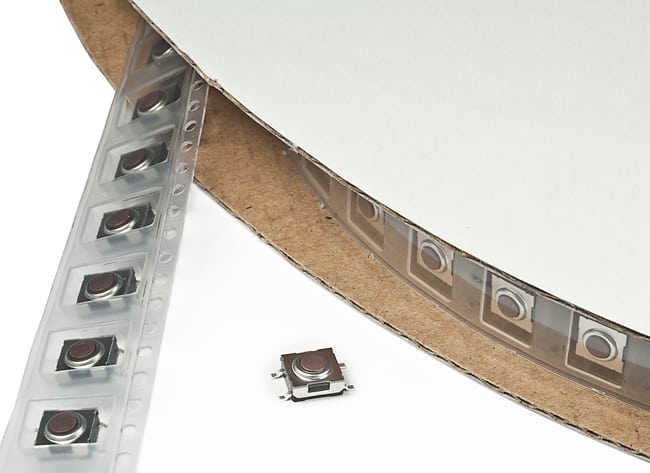

CB315FP-R

6mm Process Sealed SMT Tactiles

CB3 Series
6mm Process Sealed SMT Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
CB315FP-R
Description
6mm Process Sealed SMT Tactiles
Name
Tactile
Series
CB3
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.05A @ 24VDC
Actuator Type
Standard
Mounting Type
Surface Mount
Actuator Height Off PCB From Pins
3.10mm
Actuator Orientation
Top Actuated
Termination Style
Gull Wing
Outline
6.20mm x 6.20mm
Illumination
Non-Illuminated
Operating Force
157gf
Features
Sealed - Fully
