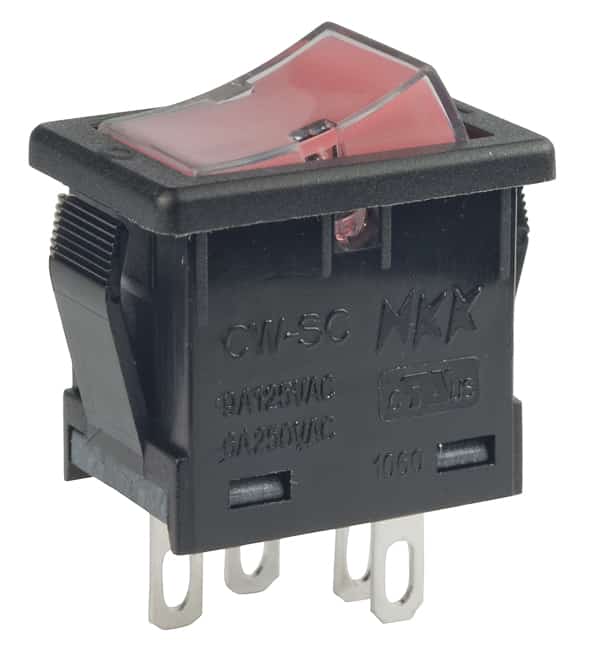

CWSC11JCACS

LED Miniature Power Rockers

CWSC Series
LED Miniature Power Rockers

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
CWSC11JCACS
Description
LED Miniature Power Rockers
Name
Rocker
Series
CWSC
Status
Active
Poles
SPST
Circuits
On-Off
Current Rating
9A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved) - Illuminated
Actuator Cap Color
Clear (Red Filter/Diffuser)
Actuator Marking
No Marking
illumination voltage
1.95 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Quick Connect - 0.110" (2.8mm)
Features
Audible Click
panel cutout dimensions
Rectangular - 19.20mm x 12.90mm
Rating
9
Illumination
Illuminated
