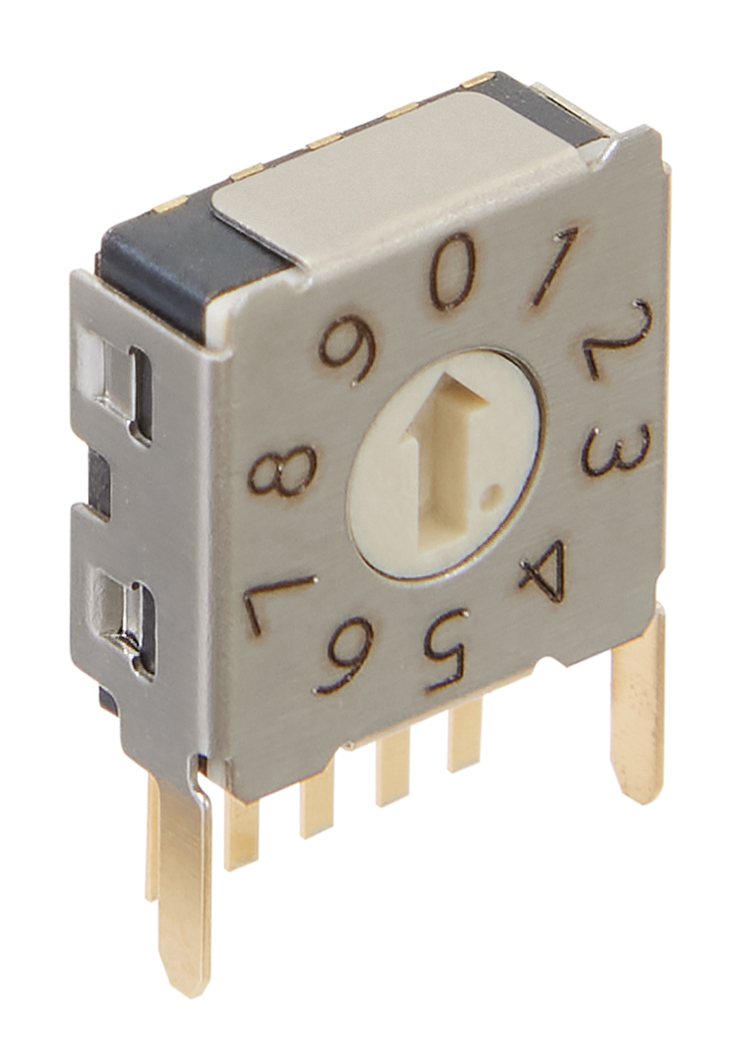

FD01FR10H-S

Ultra-Thin DIP Rotary Switch

FD01 Series
Ultra-Thin DIP Rotary Switch

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FD01FR10H-S
Description
Ultra-Thin DIP Rotary Switch
Name
Rotary
Series
FD01
Poles
N/A
Circuits
Real Coded
no positions
10
Current Rating
0.4VA
Rating (AC)
20V
Rating (DC)
20V
Actuator Type
Screwdriver
contact material
Corson Alloy
contact finish
Gold Plating
Mounting Type
Through Hole
Termination Style
Right Angle
Features
Ultra-Thin DIP Rotary, Through Hole Terminals
Rating
0.4VA
