FD02KR16P-S

Ultra-Thin DIP Rotary Switch

FD02 Series
Ultra-Thin DIP Rotary Switch

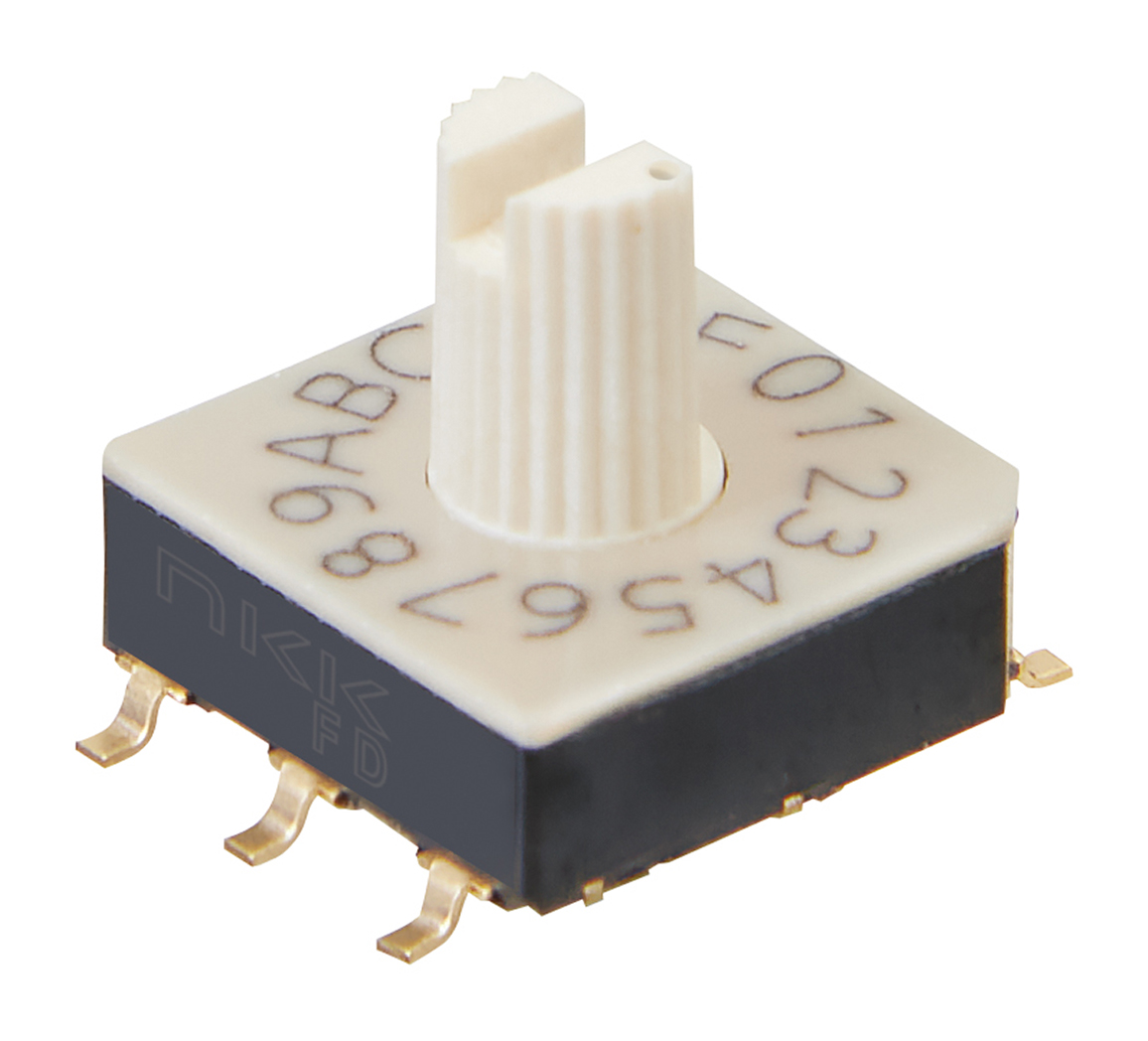

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FD02KR16P-S
Description
Ultra-Thin DIP Rotary Switch
Name
Rotary
Series
FD02
Poles
N/A
Circuits
Real Coded
no positions
16
Current Rating
0.4VA
Rating (AC)
20V
Rating (DC)
20V
Actuator Type
Plastic Shaft
actuator length
4.1mm
contact material
Corson Alloy
contact finish
Gold Plating
Mounting Type
Surface Mount
Termination Style
Straight
Features
Ultra-Thin DIP Rotary, Surface Mount Terminals
Rating
0.4VA
