FF0116BBCEEA01

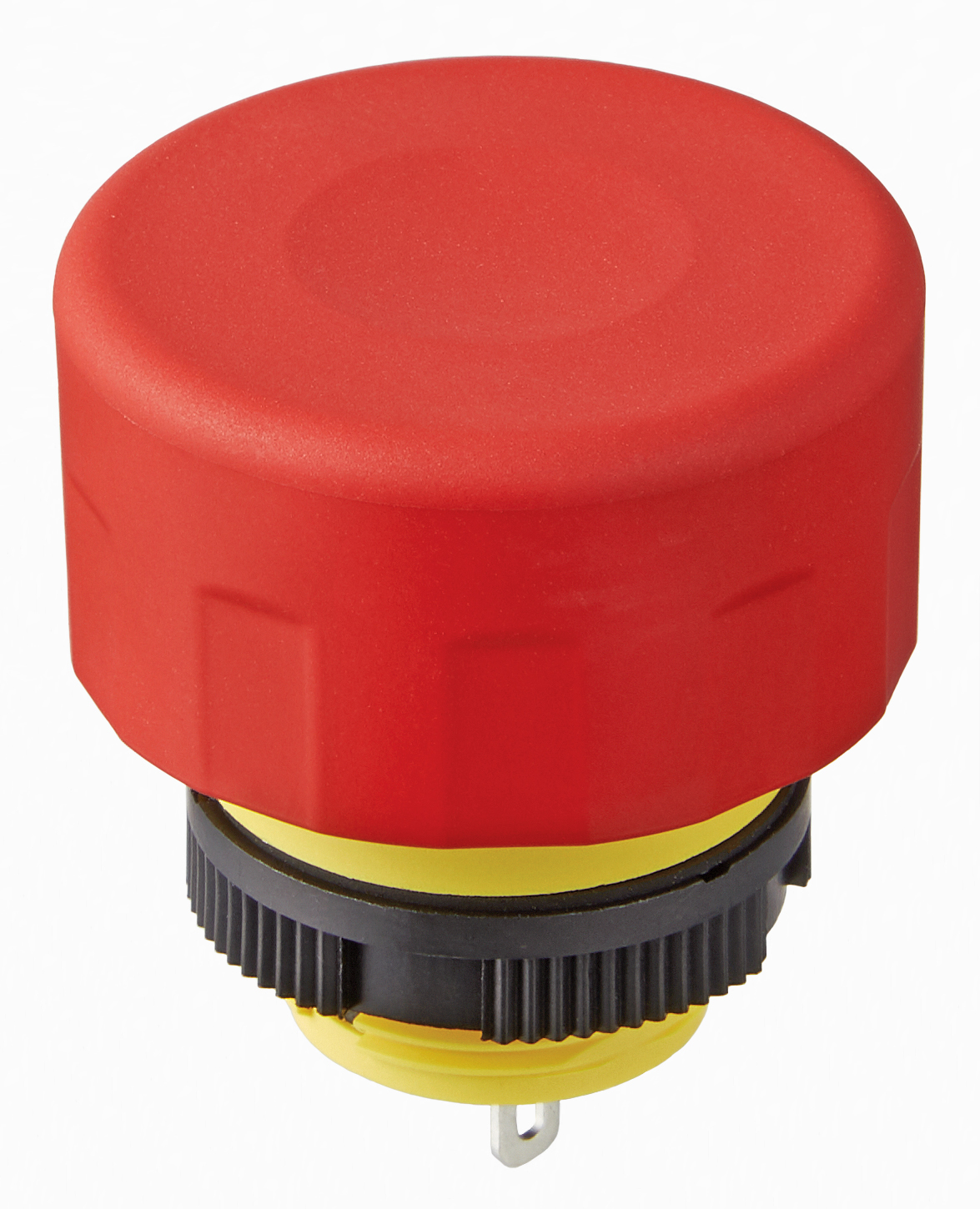

Low Profile Emergency Stop Switch

FF01 Series
Low Profile Emergency Stop Switch

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
FF0116BBCEEA01
Description
Low Profile Emergency Stop Switch
Name
E-Stop
Series
FF01
Circuits
1NC
Rating (DC)
24V
Actuator Type
30.0mm (No Legends)
Actuator Cap Color
Red
Mounting Type
Panel Mount
Termination Style
Solder Lug
ingress protection
IP65
Features
Pull/Twist to reset
Rating
0.5A (DC)
Poles
SPST
panel cutout dimensions
Circular - 16.2mm Dia
