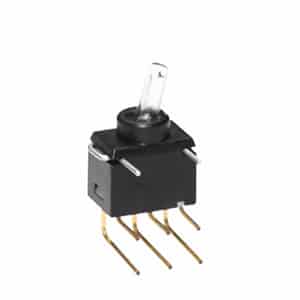

G12JHF

Ultra-Miniature Fully Illuminated Toggles

G Series
Ultra-Miniature Fully Illuminated Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
G12JHF
Description
Ultra-Miniature Fully Illuminated Toggles
Name
Toggle
Series
G
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
3.80mm
Illumination
Illuminated
illumination type color
LED, Green
illumination voltage nominal
2.1 VDC
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Process Sealed
Rating
0.4
