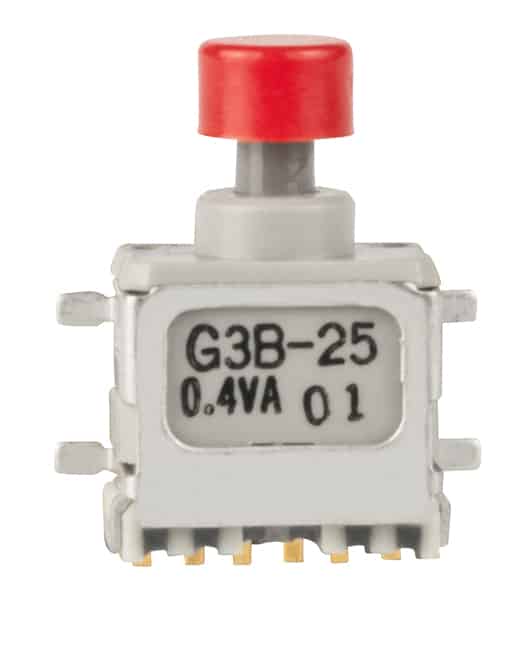

G3B25AH-XC

Ultra-Miniature Process Sealed SMT Pushbuttons

G3B Series
Ultra-Miniature Process Sealed SMT Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
G3B25AH-XC
Description
Ultra-Miniature Process Sealed SMT Pushbuttons
Name
Pushbutton
Series
G3B
Poles
DPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Button
Actuator Cap Color
Red
Mounting Type
Surface Mount, Right Angle
Termination Style
Gull Wing
Features
Process Sealed
Rating
0.4
Illumination
Non-Illuminated
