GB15JHD

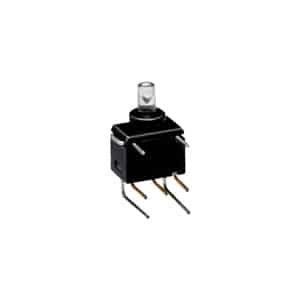

Ultra-Miniature Fully Illuminated Plungers

GB Series
Ultra-Miniature Fully Illuminated Plungers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
GB15JHD
Description
Ultra-Miniature Fully Illuminated Plungers
Name
Pushbutton
Series
GB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Plunger
Actuator Cap Color
Clear
illumination color
LED, Amber
illumination voltage
2 VDC
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
