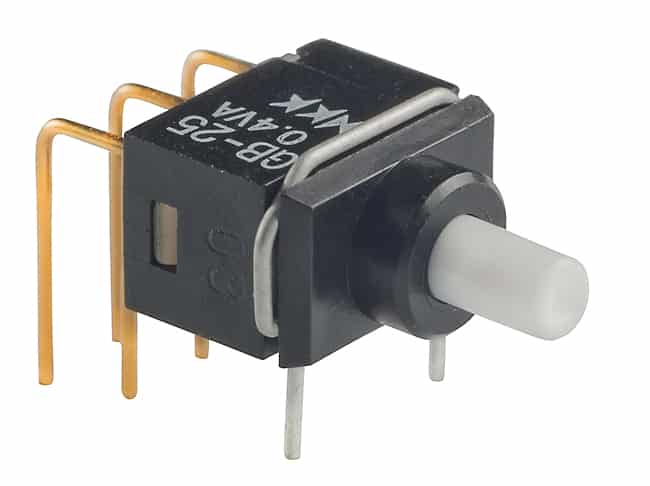

GB25AH

Process Sealed Ultra-Miniature Pushbuttons

GB Series
Process Sealed Ultra-Miniature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
GB25AH
Description
Process Sealed Ultra-Miniature Pushbuttons
Name
Pushbutton
Series
GB
Poles
DPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
Actuator Cap Color
White
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
Rating
0.4
Illumination
Non-Illuminated
