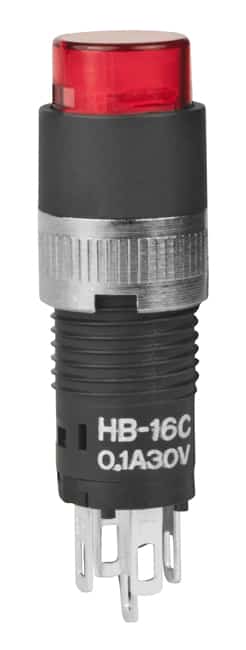

HB16CKW01-5C-CB

Subminiature Pushbuttons

HB Series
Subminiature Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HB16CKW01-5C-CB
Description
Subminiature Pushbuttons
Name
Pushbutton
Series
HB
Poles
SPDT
Circuits
On-On
Current Rating
100mA (DC)
Rating (AC)
30V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Red
illumination color
LED, Red
illumination voltage
1.95 VDC
Mounting Type
Panel Mount, Front
Termination Style
Solder Lug
panel cutout dimensions
Circular - 8.00mm Dia
Rating
0.4
Illumination
Illuminated
