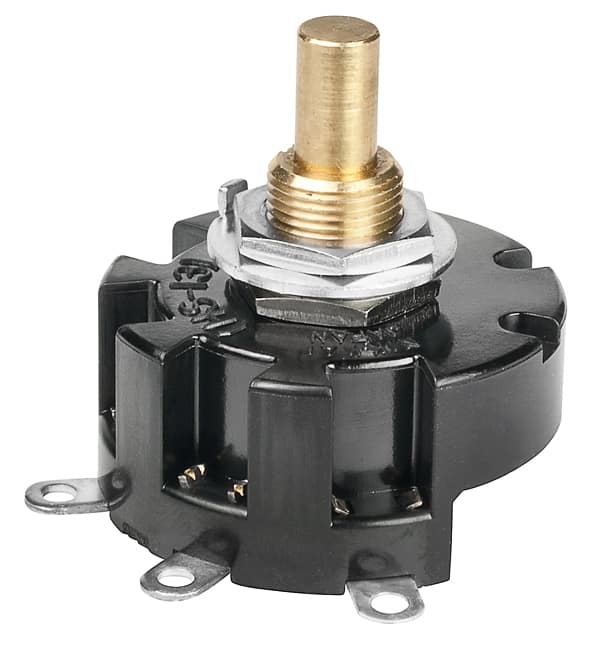

HS13X

Standard Size Rotaries

HS Series
Standard Size Rotaries

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HS13X
Description
Standard Size Rotaries
Name
Rotary
Series
HS
Poles
SPDT
no positions
2
index stops
Fixed
no decks
1
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
6A (AC), 5A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round (6mm Dia)
actuator length
10.00mm
angle of throw
45°
contact material
Phosphor Bronze
Mounting Type
Panel Mount
Termination Style
Solder Lug
depth behind panel
20.00mm
Rating
6
