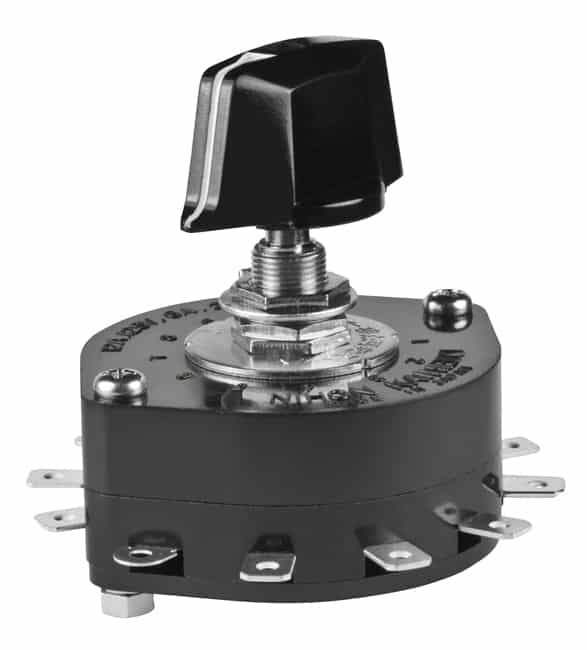

HS16-1N-AT432

SWITCH ROTARY 2-11POS 12A 125V

HS Series
SWITCH ROTARY 2-11POS 12A 125V

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
HS16-1N-AT432
Description
SWITCH ROTARY 2-11POS 12A 125V
Name
Rotary
Series
HS
Poles
SP11T
no positions
2 ~ 11
index stops
Adjustable
no decks
1
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
12A (AC)
Rating (AC)
125V
Actuator Type
Knob
actuator length
15.00mm
angle of throw
30°
contact material
Phosphor Bronze
Mounting Type
Panel Mount
Termination Style
Solder Lug
depth behind panel
31.50mm
Rating
12
