IS15EBFP4RGB-09YN

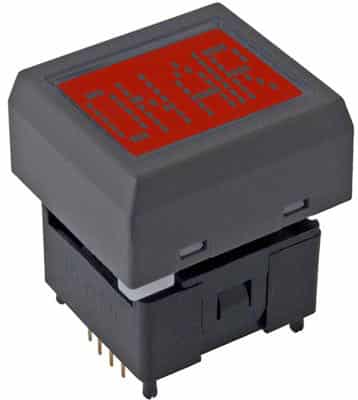

Standard Travel LCD 64 x 32 Pushbutton - IS15EBFP4RGB-09YN

SmartDisplay Programmables Series
Standard Travel LCD 64 x 32 Pushbutton - IS15EBFP4RGB-09YN

3D CAD Model Download Specifications Custom Assembly Check Inventory Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
IS15EBFP4RGB-09YN
Description
Standard Travel LCD 64 x 32 Pushbutton - IS15EBFP4RGB-09YN
Name
Programmable
Series
SmartDisplay™
Type
Pushbutton, LCD
Style
Standard, High Resolution
Display Mode
Black and White, FSTN Positive
LED Color
Red - Green - Blue
Viewing Area H x V
17.0mm x 13.0mm
Outer Dimensions
23.13mm x 20.59mm x 23.0mm
Pixel Format H x V
64 x 32
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.1A @ 12VDC
Supply Voltage
4.9 ~ 5.1VDC
Mounting Type
Through Hole
Termination Style
Straight PC Terminals
