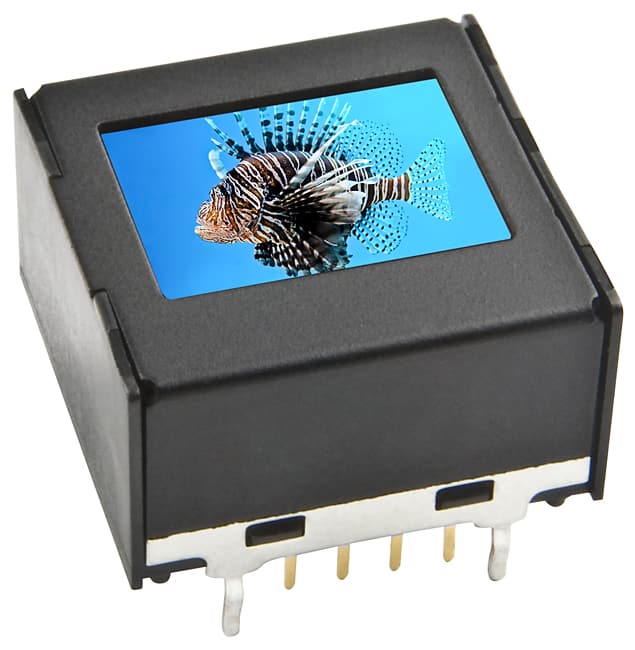

ISC01P

OLED Display - ISC01P

SmartDisplay Programmables Series
OLED Display - ISC01P

3D CAD Model Download Specifications Custom Assembly Check Inventory Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
ISC01P
Description
OLED Display - ISC01P
Name
Programmable
Series
SmartDisplay™
Type
Display, OLED
Display Mode
65,536 Colors, Passive Matrix
Viewing Area H x V
12.9mm x 9.9mm
Outer Dimensions
17.8mm x 17.2mm x 9.9mm
Pixel Format H x V
52RGB x 36
Supply Voltage
2.4 ~ 3.5V
Mounting Type
Through Hole
Termination Style
Straight PC Terminals
