ISC15ANP4

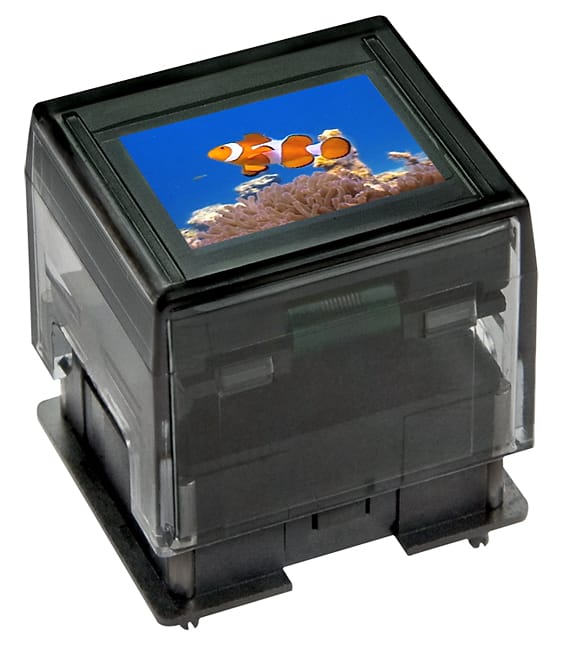

OLED Pushbutton - ISC15ANP4

SmartDisplay Programmables Series
OLED Pushbutton - ISC15ANP4

3D CAD Model Download Specifications Custom Assembly Check Inventory Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
ISC15ANP4
Description
OLED Pushbutton - ISC15ANP4
Name
Programmable
Series
SmartDisplay™
Type
Pushbutton, OLED
Display Mode
65,536 Colors, Passive Matrix
Viewing Area H x V
15.5mm x 11.6mm
Outer Dimensions
23.13mm x 20.59mm x 23.0mm
Pixel Format H x V
64RGB x 48
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.1A @ 12VDC
Supply Voltage
2.4 ~ 3.5VDC
Mounting Type
Through Hole
Termination Style
Straight PC Terminals
