JB15HBPB

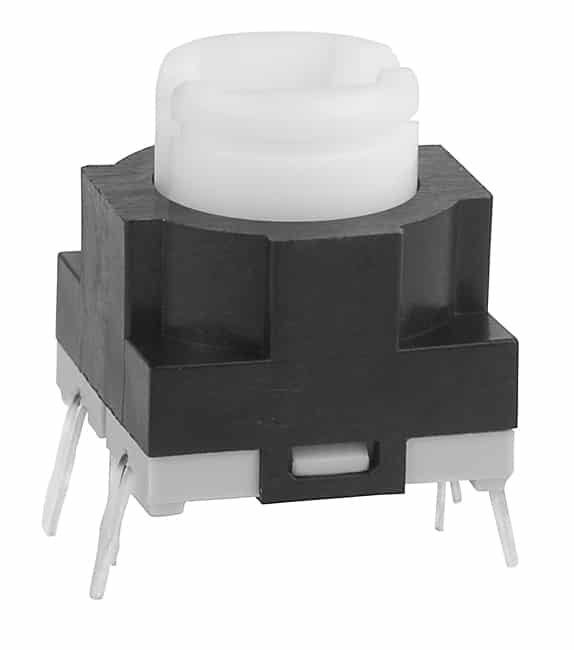

Illuminated Low Profile Process Sealed Tactiles

JB Series
Illuminated Low Profile Process Sealed Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JB15HBPB
Description
Illuminated Low Profile Process Sealed Tactiles
Name
Tactile
Series
JB
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.125A @ 24VDC
Actuator Type
Plunger for Cap
Mounting Type
Through Hole
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
10.00mm x 10.00mm
Illumination
Illuminated
illumination type color
LED, White
Operating Force
265gf
Features
Process Sealed
