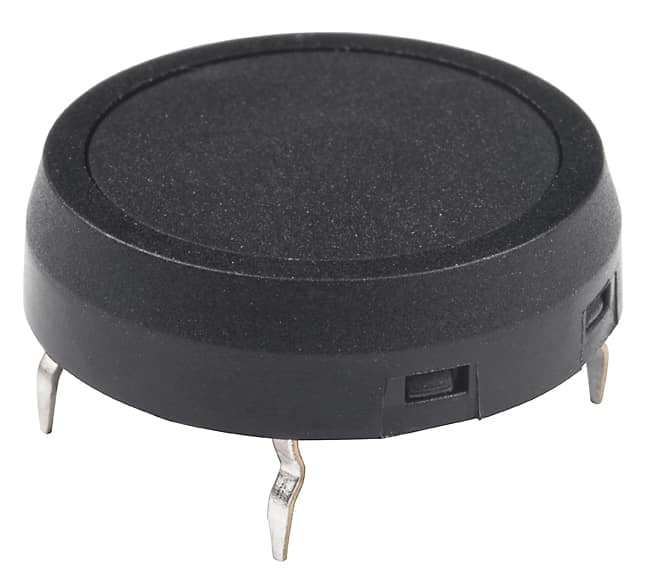

JF15CP2A

SWITCH TACTILE SPST-NO 0.05A 24V

JF Series
SWITCH TACTILE SPST-NO 0.05A 24V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JF15CP2A
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Name
Tactile
Series
JF
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.05A @ 24VDC
Actuator Type
Round Button
Mounting Type
Through Hole
Actuator Height Off PCB From Pins
5.08mm
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
17.70mm Dia
Illumination
Non-Illuminated
Operating Force
300gf
Features
Process Sealed
