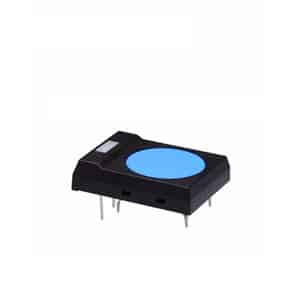

JF15RP2GC

Illuminated Ultra-Thin Process Sealed Tactiles

JF Series
Illuminated Ultra-Thin Process Sealed Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JF15RP2GC
Description
Illuminated Ultra-Thin Process Sealed Tactiles
Name
Tactile
Series
JF
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.05A @ 24VDC
Actuator Type
Round Button
Mounting Type
Through Hole
Actuator Height Off PCB From Pins
5.08mm
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
22.80mm x 17.70mm
Illumination
Illuminated
illumination voltage nominal
1.7 VDC
illumination type color
LED, Red
Operating Force
300gf
Features
Process Sealed
