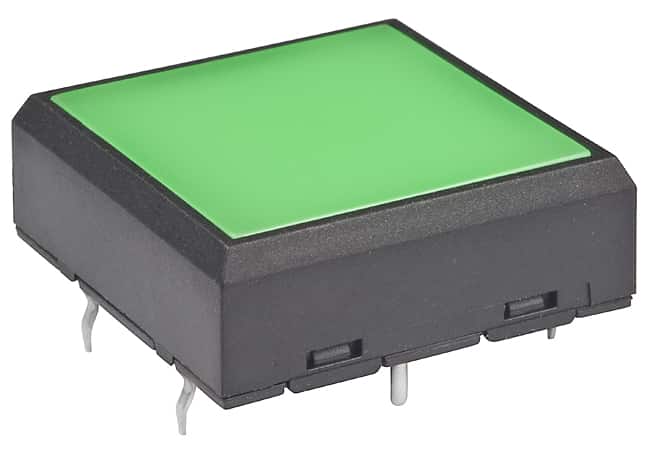

JL15SKSFFP2

Ultra-Thin Tactiles

JL Series
Ultra-Thin Tactiles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JL15SKSFFP2
Description
Ultra-Thin Tactiles
Name
Tactile
Series
JL
Poles
SPST-NO
Circuits
Off-Mom
Contact Rating
0.05A @ 24VDC
Actuator Type
Square Button
Mounting Type
Through Hole
Actuator Height Off PCB From Pins
7.85mm
Actuator Orientation
Top Actuated
Termination Style
PC Pin
Outline
22.00mm x 22.00mm
Illumination
Illuminated
illumination voltage nominal
4.2 VDC
illumination type color
LED, Green
Operating Force
300gf
