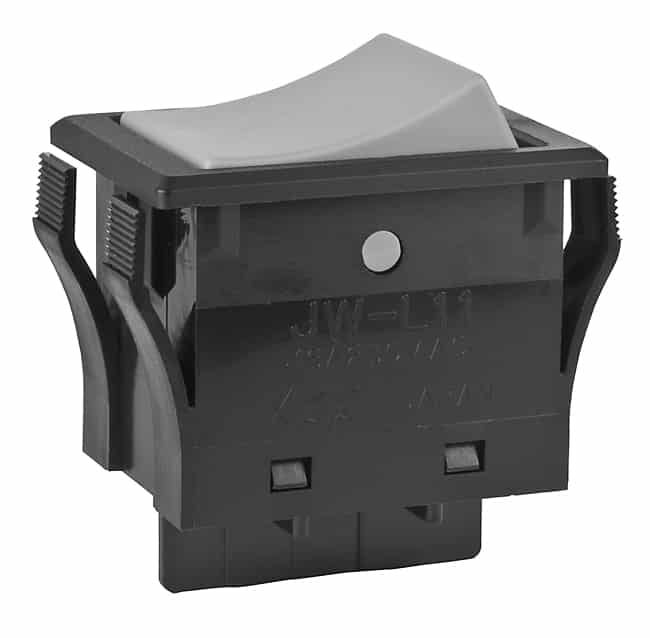

JWL11RHA/UCV

SWITCH ROCKER SPST 16A 125V

JW Series
SWITCH ROCKER SPST 16A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JWL11RHA/UCV
Description
SWITCH ROCKER SPST 16A 125V
Name
Rocker
Series
JW
Status
Active
Poles
SPST
Circuits
On-Off
Current Rating
16A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved)
Actuator Cap Color
Gray
Actuator Marking
No Marking
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
ingress protection
Dust Proof
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 29.50mm x 20.50mm
Rating
16
Illumination
Non-Illuminated
