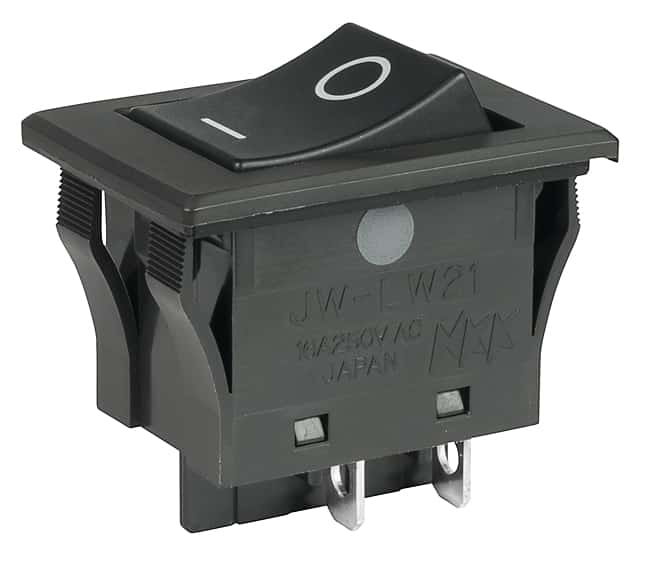

JWLW21RA1A

High Inrush 10 & 16 AMP Rockers

JW Series
High Inrush 10 & 16 AMP Rockers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JWLW21RA1A
Description
High Inrush 10 & 16 AMP Rockers
Name
Rocker
Series
JW
Status
Active
Poles
DPST
Circuits
On-Off
Current Rating
16A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
O I
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
ingress protection
IP67
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 30.70mm x 20.50mm
Rating
16
Illumination
Non-Illuminated
