Product Change NoticesGeneral Specifications
Part No.

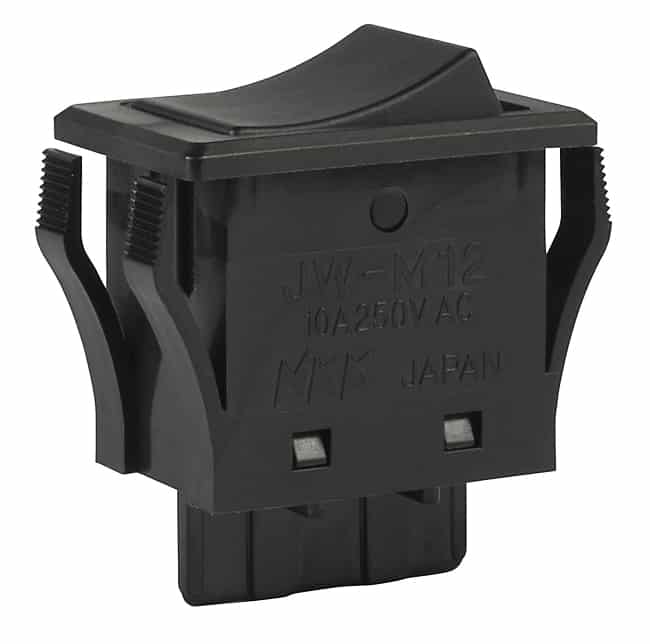

JWM12RAA/UCV
Description
SWITCH ROCKER SPDT 10A 125V
Name
Rocker
Series
JW
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
No Marking
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
Dust Proof
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 24.00mm x 15.40mm
Rating
10
Illumination
Non-Illuminated
