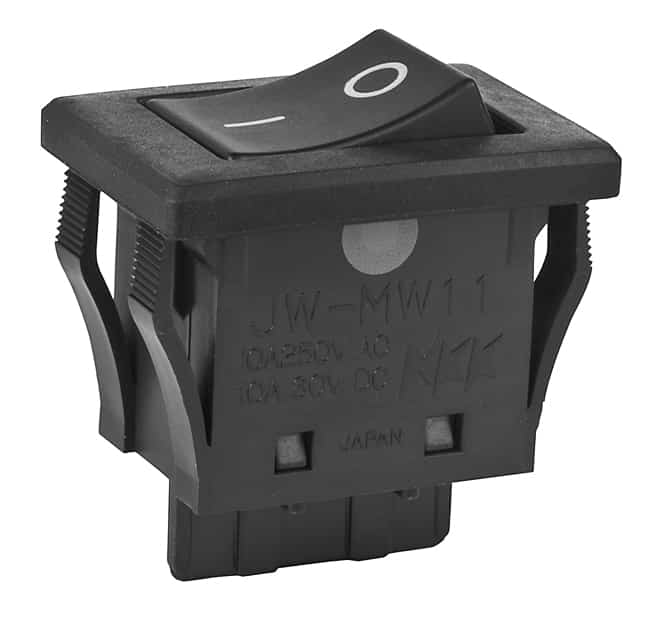

JWMW11RA2A/UC

SWITCH ROCKER SPST 10A 125V

JW Series
SWITCH ROCKER SPST 10A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JWMW11RA2A/UC
Description
SWITCH ROCKER SPST 10A 125V
Name
Rocker
Series
JW
Status
Active
Poles
SPST
Circuits
On-Off
Current Rating
10A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
O -
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP67
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 25.00mm x 15.40mm
Rating
10
Illumination
Non-Illuminated
