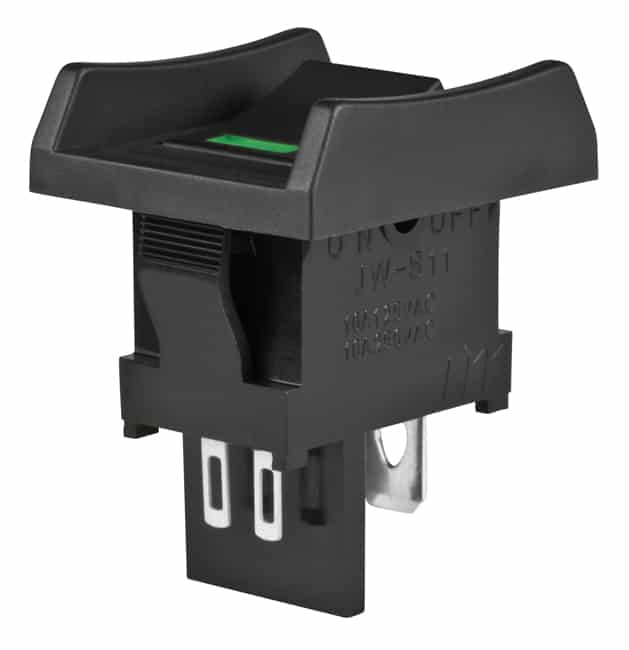

JWS11BAAF-A

Internationally Approved Rockers

JWS Series
Internationally Approved Rockers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
JWS11BAAF-A
Description
Internationally Approved Rockers
Name
Rocker
Series
JWS
Status
Active
Poles
SPST
Circuits
On-Off
Current Rating
6A (AC)
Rating (AC)
125V
Actuator Type
Concave (Curved) - Illuminated
Actuator Cap Color
Black
Actuator Marking
No Marking
illumination voltage
2.1 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
ingress protection
Dust Proof
Features
With Barrier
panel cutout dimensions
Rectangular - 19.20mm x 12.90mm
Rating
6
Illumination
Illuminated
