KP0415ASG03RGBW-1TJB

Compact Surface Mount Illuminated Pushbutton

KP04 Series
Compact Surface Mount Illuminated Pushbutton

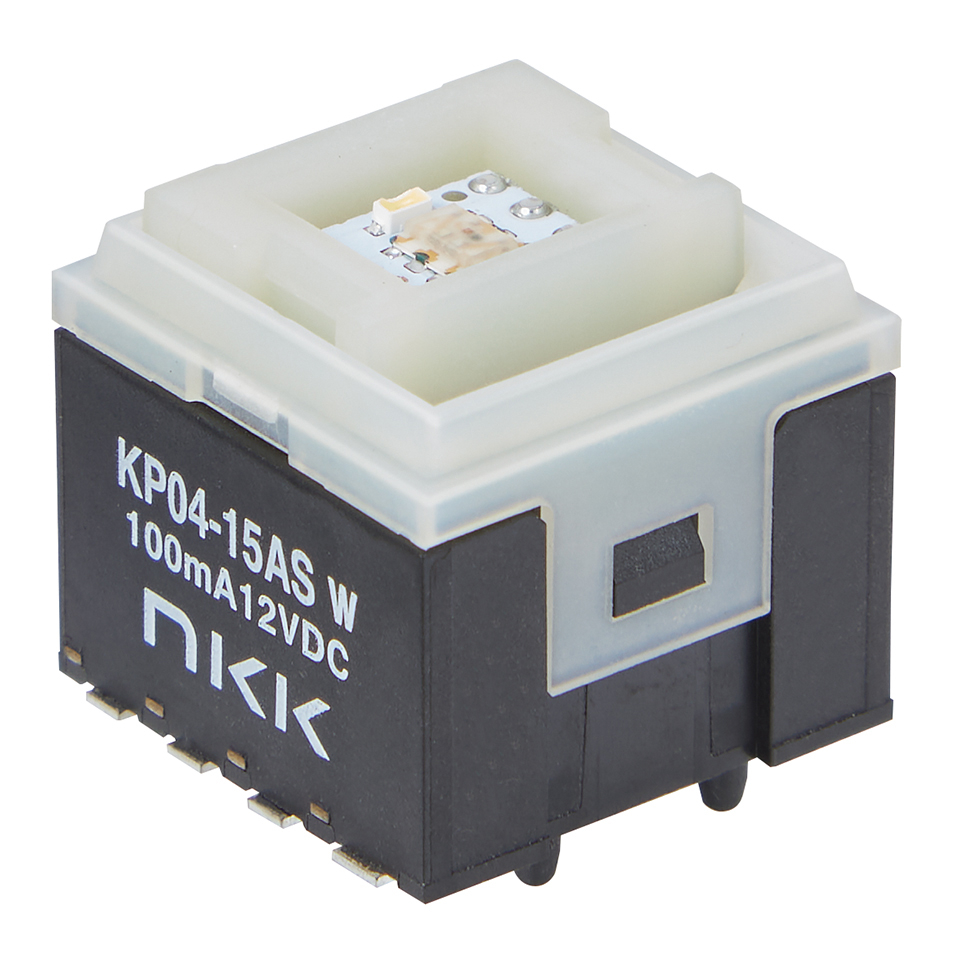

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
KP0415ASG03RGBW-1TJB
Description
Compact Surface Mount Illuminated Pushbutton
Name
Pushbutton
Series
KP04
Poles
SPST
Circuits
Off-Mom
Current Rating
100mA (DC)
Rating (DC)
12V
Actuator Type
Square, Button, Tactile/Audible
Actuator Cap Color
Clear (White Filter/Diffuser)
illumination color
Red/Green/Blue/White
illumination voltage
2.10, 2.65, 2.90, 3.08 VDC
Mounting Type
Surface Mount
Termination Style
Surface Mount
Features
Surface mount, RGB+W LED with a tactile/audible actuation
Rating
100mA (DC)
Illumination
LED
