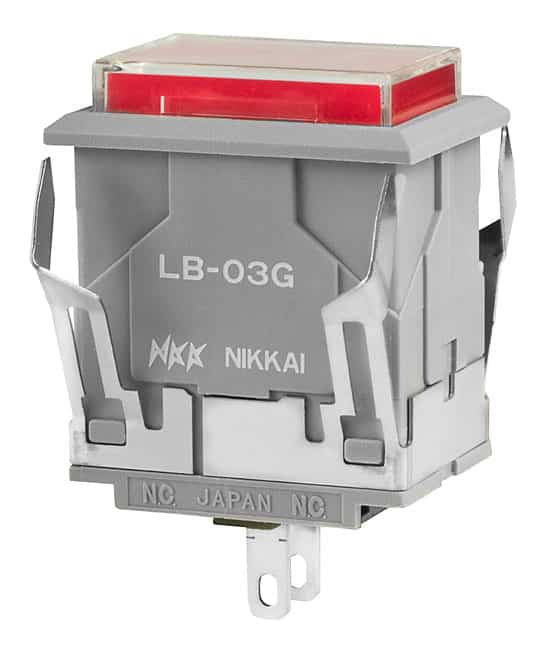

LB03GW01-5C24-JC

Indicators

LB Series
Indicators

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB03GW01-5C24-JC
Description
Indicators
Series
LB
Type
LED
Lamp Color
Red
lens color
Red
lens transparency
Clear
Voltage Rating
24V
Current
13mA
Lens Style Size
Rectangle with Flat Top, 19.40mm x 13.20
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.88" x 0.64" (22.35mm x 16.26mm)
ratings
AC
panel cutout shape
Rectangular
Rating
0.013
