LB15CGG01-5D05-JD

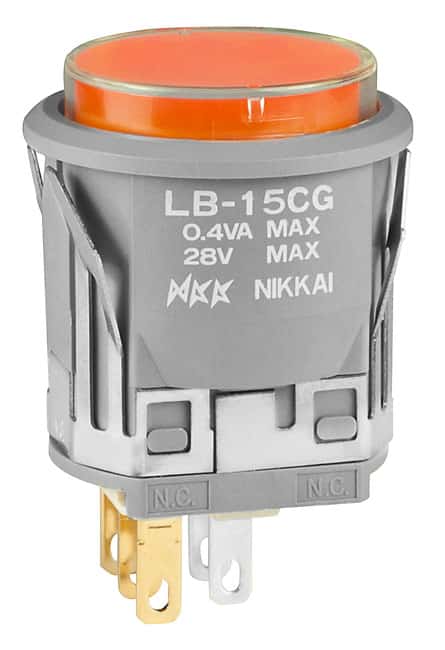

Standard Size Snap-In Pushbuttons

LB Series
Standard Size Snap-In Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15CGG01-5D05-JD
Description
Standard Size Snap-In Pushbuttons
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Button
Actuator Cap Color
Clear (Amber Filter/Diffuser)
illumination color
LED, Amber
illumination voltage
5 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65
panel cutout dimensions
Circular - 22.00mm Dia
Rating
0.4
Illumination
Illuminated
