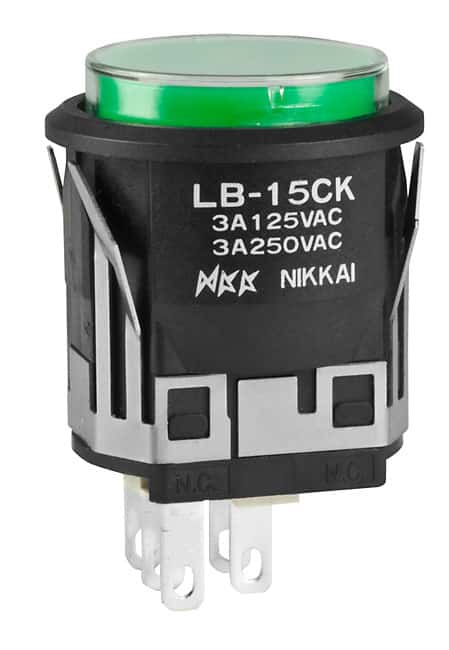

LB15CKW01-5F24-JF

Standard Size Snap-In Pushbuttons

LB Series
Standard Size Snap-In Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15CKW01-5F24-JF
Description
Standard Size Snap-In Pushbuttons
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Clear (Green Filter/Diffuser)
illumination color
LED, Green
illumination voltage
24 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65
panel cutout dimensions
Circular - 22.00mm Dia
Rating
3
Illumination
Illuminated
