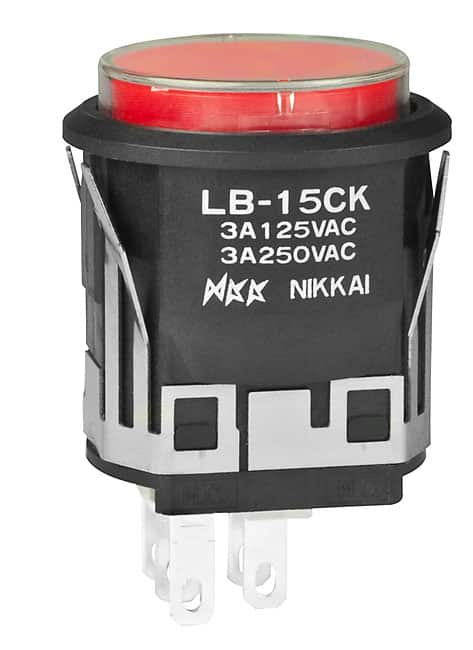

LB15CKW01-JC

SWITCH PUSHBUTTON SPDT 3A 125V

LB Series
SWITCH PUSHBUTTON SPDT 3A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
LB15CKW01-JC
Description
SWITCH PUSHBUTTON SPDT 3A 125V
Name
Pushbutton
Series
LB
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Clear (Red Filter/Diffuser)
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
ingress protection
IP65
panel cutout dimensions
Circular - 22.00mm Dia
Rating
3
Illumination
Non-Illuminated
