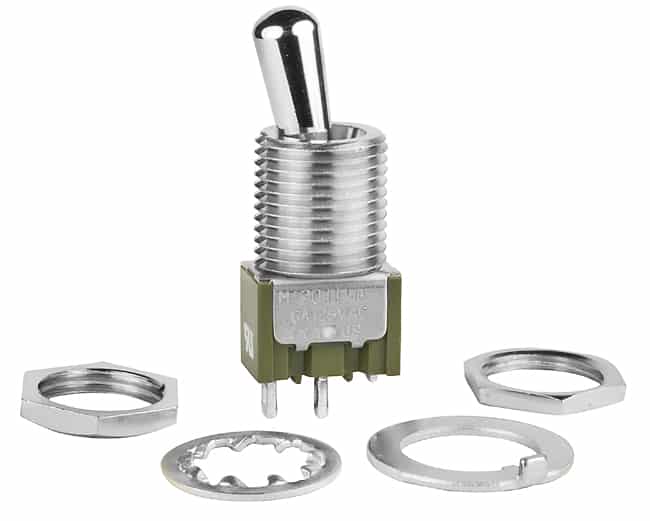

M2011BB1W01/U

SWITCH TOGGLE SPST 6A 125V

M Series
SWITCH TOGGLE SPST 6A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2011BB1W01/U
Description
SWITCH TOGGLE SPST 6A 125V
Name
Toggle
Series
M
Poles
SPST
Circuits
On-Off
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
11.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Features
Epoxy Sealed Terminals
Rating
6
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
M2011BB1W01/U
N/A
Discontinued
N/A
