Product Change NoticesGeneral Specifications

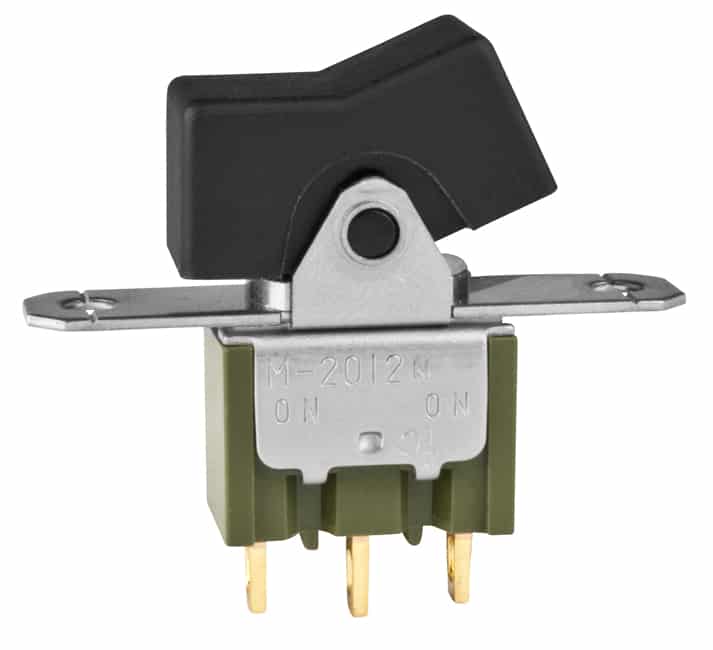

Part No.
M2012TNG01-DA
Description
Flat Frame Mount Miniature Rockers
Name
Rocker
Series
M
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Concave (Standard V)
Actuator Cap Color
Black
Actuator Marking
No Marking
Mounting Type
Panel Mount, Flange
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 17.80mm x 10.10mm
Rating
0.4
Illumination
Non-Illuminated
