Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.

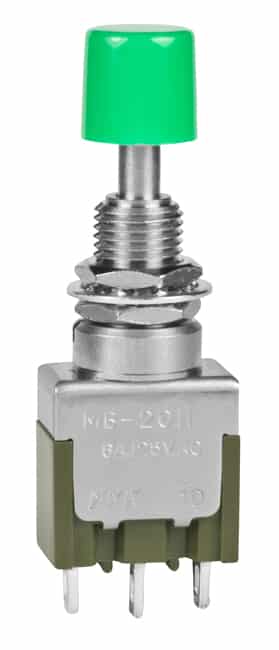

MB2011LS1W01-BF
Description
Bushing Mount Miniature Pushbuttons
Name
Pushbutton
Series
MB2000
Poles
SPDT
Circuits
On-Mom
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Green
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.50mm Dia
Rating
6
Illumination
Non-Illuminated
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
