MBN15LS1W01-CC

SWITCH PUSHBUTTON SPDT 3A 125V

MB2000 Series
SWITCH PUSHBUTTON SPDT 3A 125V

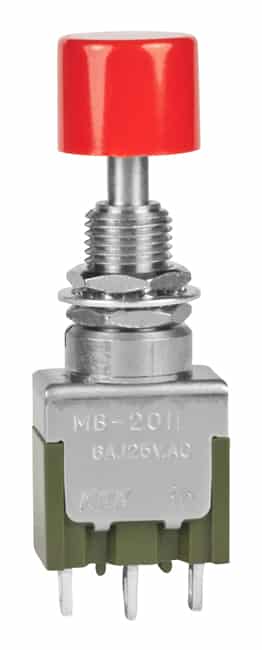

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MBN15LS1W01-CC
Description
SWITCH PUSHBUTTON SPDT 3A 125V
Name
Pushbutton
Series
MB2000
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC), 2A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Red
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.50mm Dia
Rating
6
Illumination
Non-Illuminated
