MN12B2B1G03

SWITCH TOGGLE SPDT 0.4VA 28V

M Series
SWITCH TOGGLE SPDT 0.4VA 28V

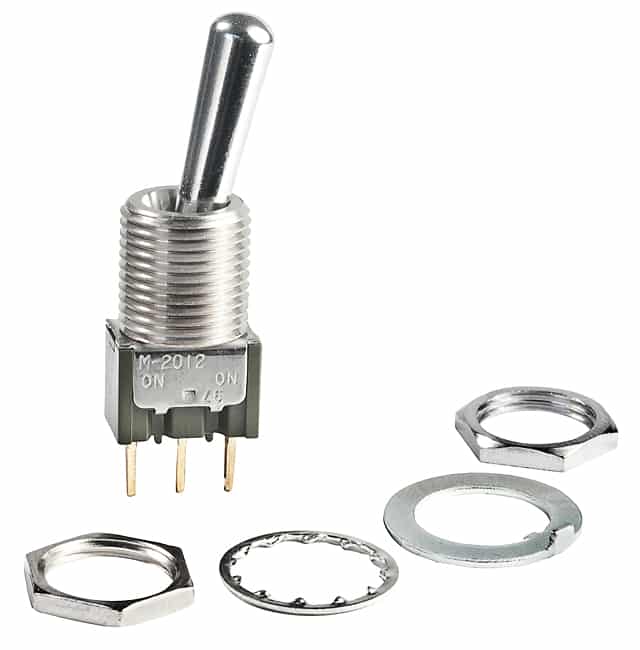

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN12B2B1G03
Description
SWITCH TOGGLE SPDT 0.4VA 28V
Name
Toggle
Series
M
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
PC Pin
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Features
Epoxy Sealed Terminals
Rating
6
