MRAN403-BG

SWITCH ROTARY 2-3POS 250MA 125V

MR Series
SWITCH ROTARY 2-3POS 250MA 125V

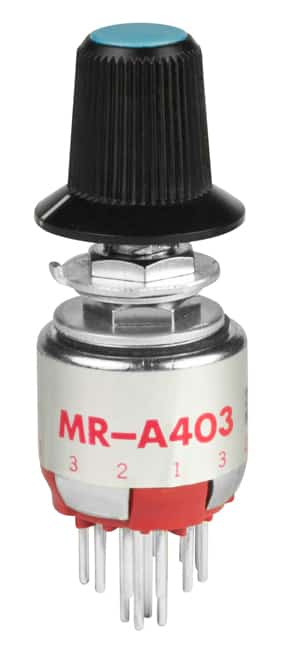

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MRAN403-BG
Description
SWITCH ROTARY 2-3POS 250MA 125V
Name
Rotary
Series
MR
Poles
4P3T
no positions
2~3
index stops
Adjustable
no decks
1
no poles per deck
4
contact timing
Non-Shorting (BBM)
Current Rating
250mA (AC)
Rating (AC)
125V
Rating (DC)
28V
Actuator Type
Knob
actuator length
14.30mm
angle of throw
30°
contact material
Copper
contact finish
Silver
Mounting Type
Panel Mount, Through Hole
Termination Style
PC Pin
Features
Process Sealed
depth behind panel
17.00mm
Rating
0.25
