Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.

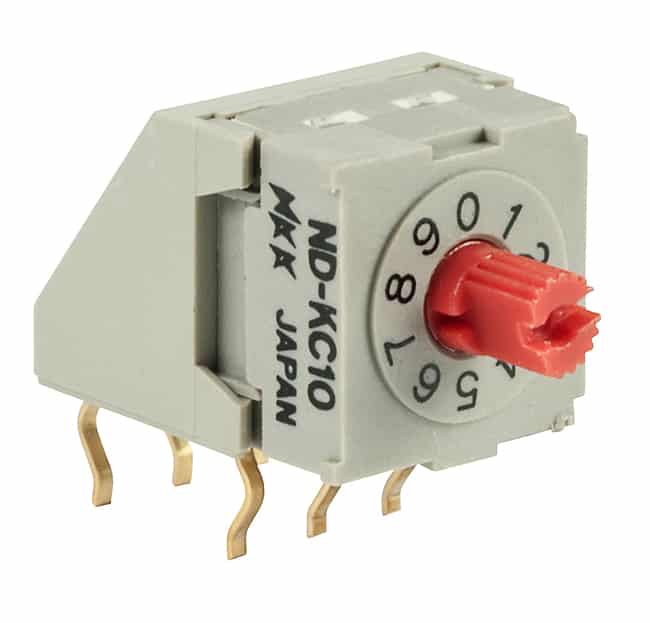

NDKC10H
Description
8mm Process Sealed DIP Rotaries
Name
DIP
Packaging
Tray
Series
ND
Poles
BCD Complement
no positions
10
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary with Shaft
actuator level
Raised
contact material
Beryllium Copper
contact finish
Gold
height above board
0.312" (7.92mm)
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
Yes
Features
Process Sealed
Rating
0.1
