Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications
Part No.
NDKR10P
Description

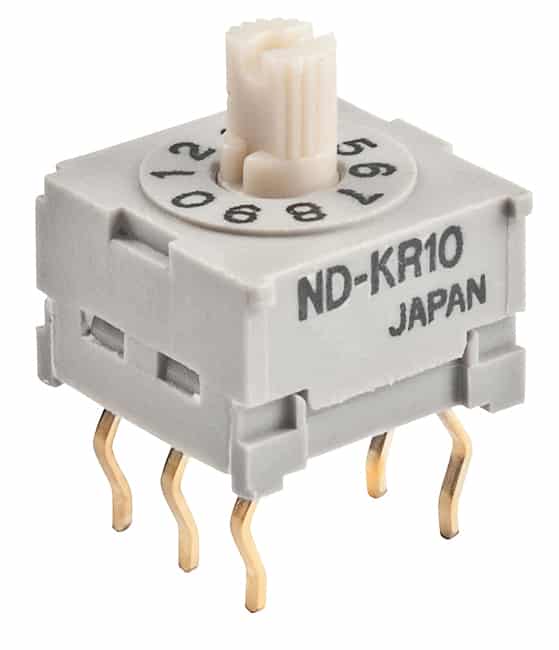

8mm Process Sealed DIP Rotaries
Name
DIP
Packaging
Tray
Series
ND
Poles
BCD
no positions
10
Current Rating
100mA
Voltage Rating
5VDC
Actuator Type
Rotary with Shaft
actuator level
Raised
contact material
Beryllium Copper
contact finish
Gold
height above board
0.331" (8.40mm)
Mounting Type
Through Hole
Termination Style
PC Pin
pitch
0.100" (2.54mm), Full
washable
Yes
Features
Process Sealed
Rating
0.1
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
