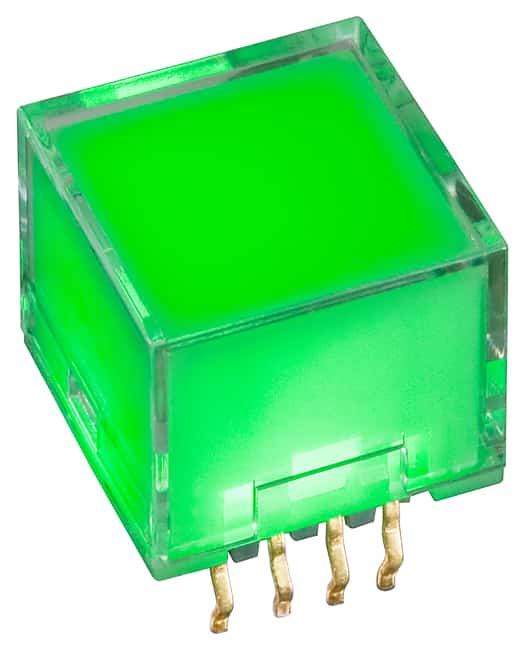

NP0115AG03LF-JF

Subminiature Smooth Actuation Pushbuttons

NP01 Series
Subminiature Smooth Actuation Pushbuttons

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
NP0115AG03LF-JF
Description
Subminiature Smooth Actuation Pushbuttons
Name
Pushbutton
Series
NP01
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Square, Button
Actuator Cap Color
Clear (Green Filter/Diffuser)
illumination color
LED, Green
illumination voltage
3.5 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Rating
0.4
Illumination
Illuminated
