NR01103ANG13

Subminiature Process Sealed Rotaries

NR01 Series
Subminiature Process Sealed Rotaries

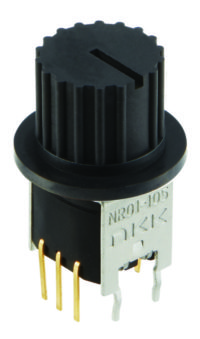

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
NR01103ANG13
Description
Subminiature Process Sealed Rotaries
Name
Rotary
Series
NR01
no positions
3
index stops
3
no poles per deck
1
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
No Knob
angle of throw
45°
contact material
Phosphor bronze
contact finish
Gold Plating
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Positive, Distinctive Detent
Rating
0.4
