Product Change NoticesGeneral Specifications

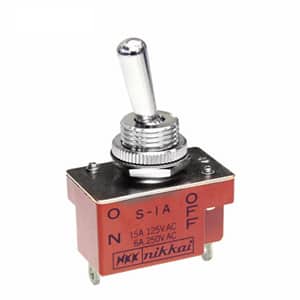

Part No.
S1A
Description
Medium Capacity Standard Size Toggles
Name
Toggle
Series
S
Poles
SPST
Circuits
On-Off
Current Rating
15A (AC), 20A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
15
