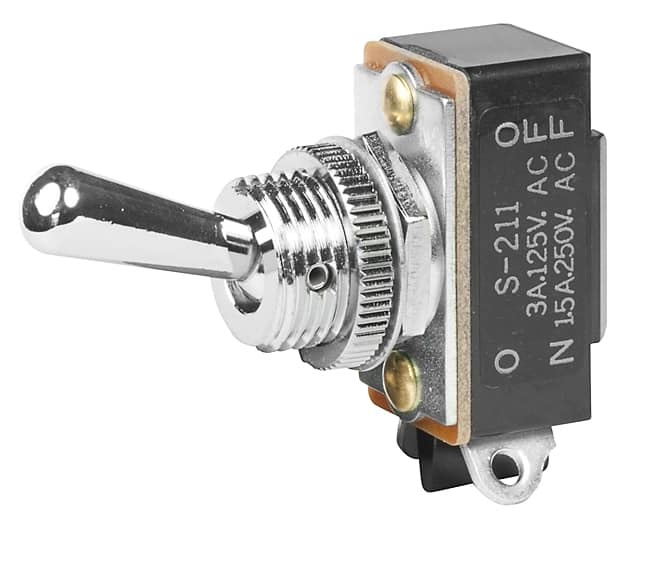

S211

SWITCH TOGGLE SPST 3A 125V

S Series
SWITCH TOGGLE SPST 3A 125V

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S211
Description
SWITCH TOGGLE SPST 3A 125V
Name
Toggle
Series
S
Poles
SPST
Circuits
On-Off
Current Rating
3A (AC), 1.5A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
16.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
3
