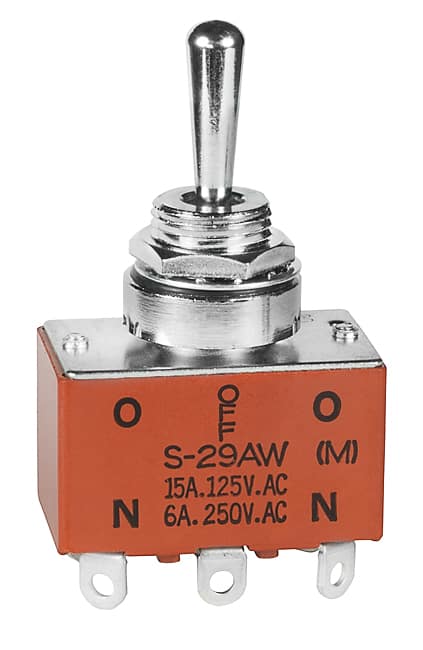

S29AW

Medium Capacity Standard Size Panel Seal Toggles

S Series
Medium Capacity Standard Size Panel Seal Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
S29AW
Description
Medium Capacity Standard Size Panel Seal Toggles
Name
Toggle
Series
S
Poles
DPDT
Circuits
On-Off-Mom
Current Rating
15A (AC), 20A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67
Rating
15
