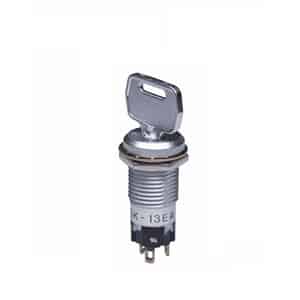

SK13EAW01

Low & Medium Security Keylocks

SK Series
Low & Medium Security Keylocks

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
SK13EAW01
Description
Low & Medium Security Keylocks
Name
KEYLOCK
Series
SK
Poles
SPDT
no positions
3
Circuits
On-Off-On
contact timing
Non-Shorting (BBM)
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Flat Key
key removable positions
2 only
angle throw
45°
contact material
Silver (Ag)
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.00mm Dia
Features
Epoxy Sealed Terminals
Rating
3
