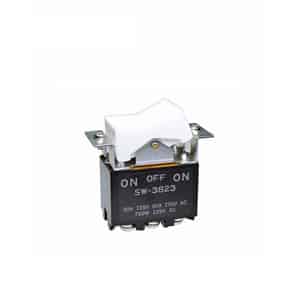

SW3823

High Capacity Rockers

SW Series
High Capacity Rockers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
SW3823
Description
High Capacity Rockers
Name
Rocker
Series
SW
Status
Active
Poles
DPDT
Circuits
On-Off-On
Current Rating
30A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Concave (Standard V)
Actuator Cap Color
White
Actuator Marking
No Marking
Mounting Type
Panel Mount, Flange
Termination Style
Screw Terminal
Rating
30
Illumination
Non-Illuminated
