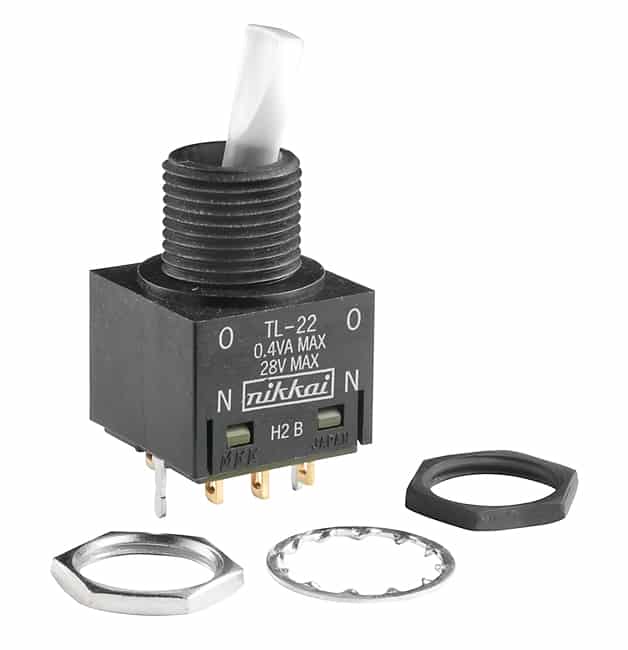

TL22SNAG016G

Fully Illuminated Toggles

TL Series
Fully Illuminated Toggles

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
TL22SNAG016G
Description
Fully Illuminated Toggles
Name
Toggle
Series
TL
Poles
DPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flatted
actuator length
11.00mm
Illumination
Illuminated
illumination type color
LED, Blue
illumination voltage nominal
3.6 VDC
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP65 - Dust Tight, Water Resistant
Features
Epoxy Sealed Terminals
Rating
0.4
Product Change Notices
No.
Current Part Num.
New Part Num.
Difference
New PN Available to Order
PDF
400
TL22SNAG016G
N/A
Discontinued
N/A
