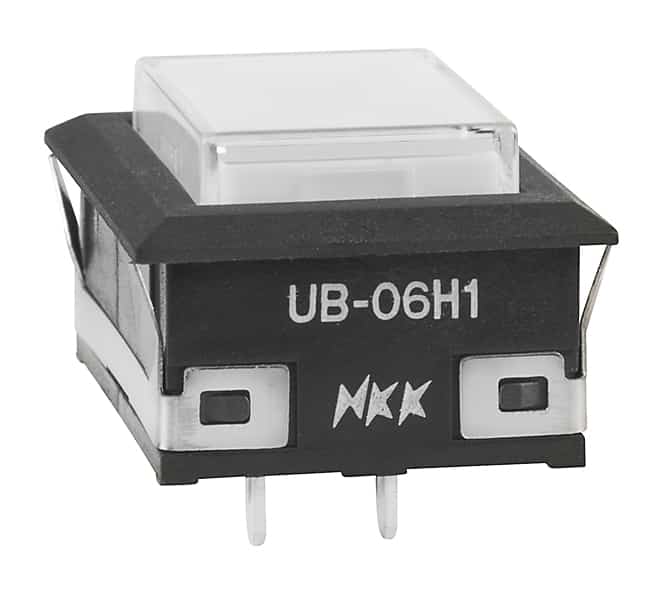

UB06KW016B-JB

INDICATOR RECT WHITE LED CLR CAP

UB Series
INDICATOR RECT WHITE LED CLR CAP

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB06KW016B-JB
Description
INDICATOR RECT WHITE LED CLR CAP
Series
UB
Type
LED
Lamp Color
White
lens color
White
lens transparency
Diffused
Voltage Rating
3.8V
Current
25mA
Lens Style Size
Rectangle with Flat Top, 17.00mm x 12.00
Mounting Type
Solder Lug
panel cutout dimensions
0.88" x 0.64" (22.35mm x 16.26mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Rectangular
Rating
0.025
