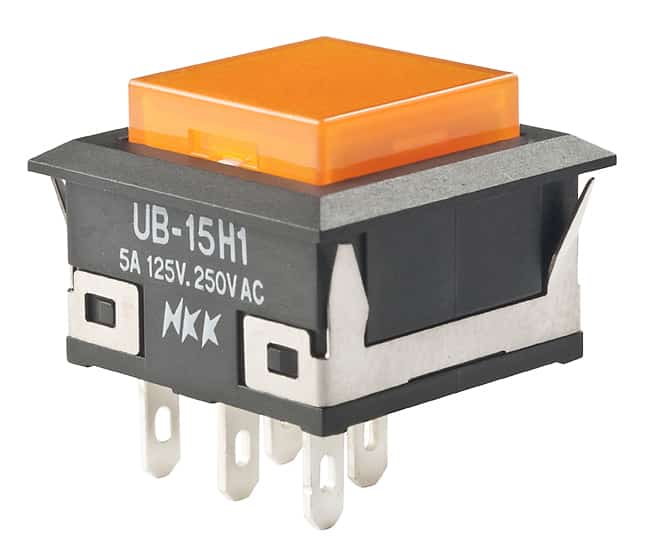

UB15KKW015D-DD

Low Profile Pushbuttons

UB Series
Low Profile Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB15KKW015D-DD
Description
Low Profile Pushbuttons
Name
Pushbutton
Series
UB
Poles
SPDT
Circuits
On-Mom
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Square, Button
Actuator Cap Color
Amber
illumination color
LED, Amber
illumination voltage
2 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Square - 16.20mm_
Rating
5
Illumination
Illuminated
