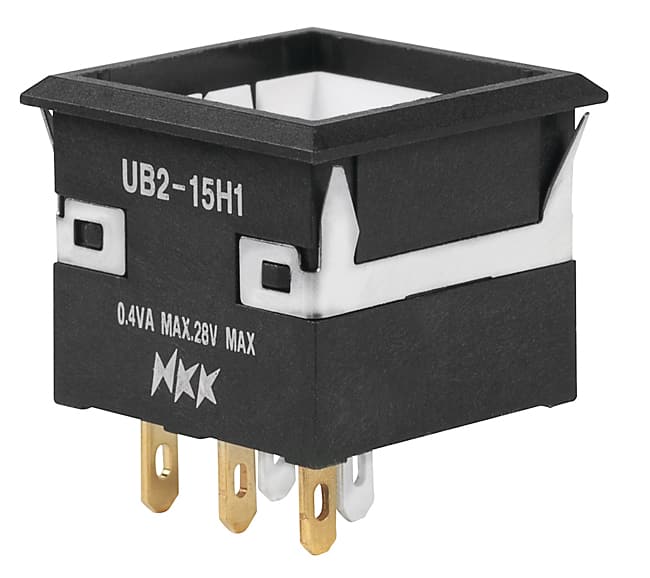

UB215KKG015F

Low Profile Pushbuttons

UB2 Series
Low Profile Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB215KKG015F
Description
Low Profile Pushbuttons
Name
Pushbutton
Series
UB2
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
illumination color
LED, Green
illumination voltage
2.1 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Square - 17.40mm_
Rating
0.4
Illumination
Illuminated
